Y type filter, feed pump inlet screen

Name:Y type filter, feed pump inlet screen

Details
1, the introduction of

Y-type filter and feed pump inlet filter are used to remove solid impurities in pipe fluid. The filter selects the filter net of different specification, makes the filter barrel to be put in the shell (or the pipeline), the filter fluid flows through the filter barrel to filter down the impurity, achieves the purpose of purifying the fluid. The feed pump inlet filter is usually installed on the pipe in front of the pump to ensure the normal operation of the pump and extend its service life.


2. Technical parameters

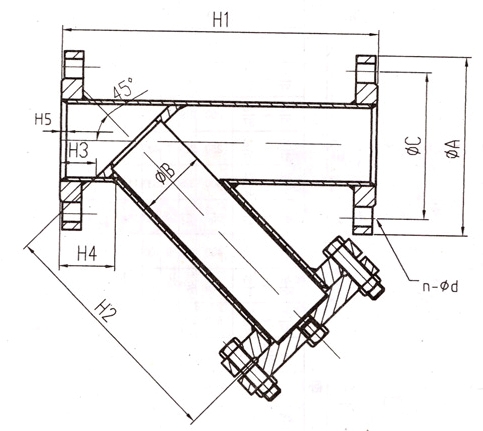

Y型过滤器
型号 φA φB φC n-φd H1 H2 H3 H4 H5
Y型滤水器DN80 φ195 φ53 φ160 4-φ18 290 180 30 50 6
Y型滤水器DN40 φ145 φ32 φ110 4-φ18 270 185 30 50 5
Y型滤水器DN50 φ165 φ42 φ125 4-φ18 320 185 30 50 5
Y型滤水器DN20 φ105 φ15 φ75 4-φ14 250 180 30 50 4
Y型滤水器DN25 φ115 φ20 φ85 4-φ14 270 200 30 50 5
Y型滤水器DN100 φ235 φ76 φ190 8-φ23 410 360 40 60 6
Y型滤水器DN32 φ135 φ25 φ100 4-φ18 270 200 30 50 5

给水泵进口滤网

给水泵进口滤网(抽出式)
  型式 图形D-
GD87-
0910-
DN
项目
φ1 S1 φ2 S2 φ3 S3 A B C D E   L 每件
重量
kg
立式   80 89 3.5 325 8     176 193         650 114
  100 108 4 325 8     176 193         650 115
  125 133 4 325 8     176 193
