DL type automatic cleaning water filter

Name:DL type automatic cleaning water filter

Details
DL type automatic cleaning water filter

1, the introduction of
DL type automatic backflush water filter can filter weeds, plastic film, paper cloth scraps and suspended substances in water, especially suitable for the return pipe of the heat net of each heat exchange station in the heat net system of power station, and clean and filter rust and sediment in the pipe. And according to local water quality conditions to carry out automatic continuous or discontinuous cleaning to keep the screen surface clean. It is one of the most advanced water filtration equipment in China, and it is suitable for various water filtration occasions in power plants and chemical plants.

2. Technical parameters
Maximum design pressure: 1.0mpa
Filter mesh aperture: Max 3-5mm
Working temperature: 100 ℃ or less
Motor power: 0.75kw 380V 50HZ

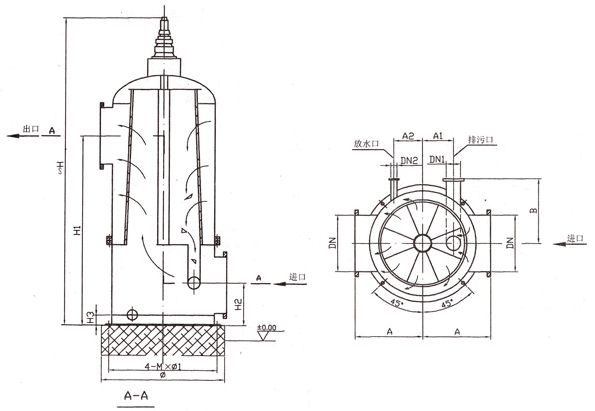

3. External dimension table



型号
规格 H H1 H2 DN DN1 DN2 A A1 A2 B H3 φ M×φ1 基础
载荷
DL6 6000 5826 3300 670 1000 250 125 1210 660 0 1220 145 2280 M27×φ2130 25.5
DL4.5 4500 3601 2050 670 900 200 100 1262 550 100 1212 150 2360 M44×φ2250 25.5
DL4 4000 4875 2840 590 800 200 100 1010 500 0 1100 140 2115 M44×φ2020 14.1
DL3 3000 4534 2540 540 700 150 100 850 450 0 900 140 1575 M27×φ1520 9.6
DL2.5 2500 4000 2180 470 600 150 80 860 365 0 860 130 1620 M42×φ1520 6.8
DL2 2000 3646 2060 425 550 150 80 710 310 0 720 120 1340 M27×φ1220 5.5
DL1.5 1500 3362 1605 380 500 150 80 760 350 0 800 120 1400 M27×φ1320 4.1
DL1.3 1300 3362 1800 400 450 150 80 645 280 0 700 130 1180 M27×φ1120 3.9
DL1.0 1000 2922 1500 340 400 125 50 535 225 0 540 90 1000 M27×φ920 2.7
DL0.8 800 2922 1500 320 350 125 50 535 225 0 540 90 1000 M27×φ920 2.2
DL0.6 600 2502 1500 265 300 100 50 425 170 0 430 85 810 M24×φ705 1.8
DL0.4 400 1922 1500 240 250 100 50 380 140 0 370 85 700 M20×φ600 1.5
