LS (D) water filter

Name：LS (D) water filter

Details

1, the introduction of
The LS(D) type water filter is used in large, medium and small power plants, chemical industry, metallurgy, oil refining and other industries. It is used to filter suspended materials and impurities in boilers and industrial water to make the water quality pure.

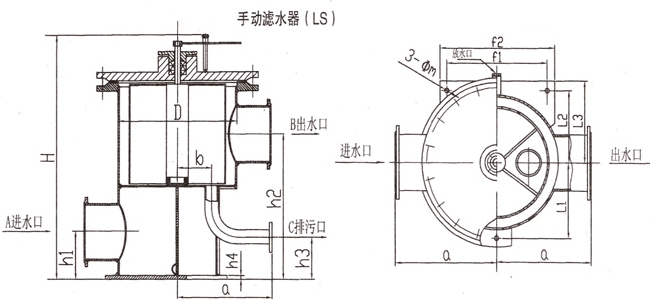

2. Technical parameters

规格 DN65 DN80 DN100 DN150 DN200 DN250 DN300 DN350 DN400 DN450 DN500
D 220 220 312 362 466 516 620 720 820 920 1020
H 424 524 641 708 857 964 1085 1207 1467 1585 1725
a 180 180 255 295 350 370 420 470 570 580 640
b 55 55 75 90 125 150 160 170 180 205 225
H1 100 100 150 160 170 200 235 270 330 360 385
H2 272 272 345 400 505 590 680 770 910 1036 1162
H3 80 80 130 140 180 200 220 240 260 280 300
H4 10 10 12 14 16 18 25 30 30 32 32
L1 140 140 190 215 265 295 345 395 440 490 540
L2 110 110 160 185 235 260 305 355 400 450 500
L3 130 130 185 210 260 285 335 385 435 485 535
F1 190 190 270 280 360 400 445 490 540 590 640
F2 230 230 320 330 410 450 500 550 600 650 700
R 160 160 215 240 290 320 375 425 475 525 575
∮m 20 20 23 23 23 23 23 23 27 30 30
A PN 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0
DN 65 80 100 150 200 250 300 350 400 450 500
B PN 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0
DN 65 80 100 150 200 250 300 350 400 450 500
C PN 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0
DN 32 32 50 65 80 100 125 150 150 175 200

If users have special requirements, we can design separately.
