ZL type automatic cleaning water filter

Name:ZL type automatic cleaning water filter

Details


ZL type automatic cleaning water filter


1, the introduction of
ZL series automatic backflush water filter is one of the most advanced water filter devices in China at present. It adopts wet-shaped filter core and multi-cylinder structure. It has the advantages of small size, easy installation, long life, high reliability, low pressure loss, high automation, high filtering precision, easy backwash and long-term non-paste mesh.

2. Technical parameters
Maximum design pressure: 1.0mpa
Design temperature: 100 ℃ or less
Flow area ratio: 6-9 times
Mesh aperture: pass 1.5-3mm
Electric actuator models: QB50 - Ⅰ
Motor power: 0.25-0.5kw
Output speed: 1r/min

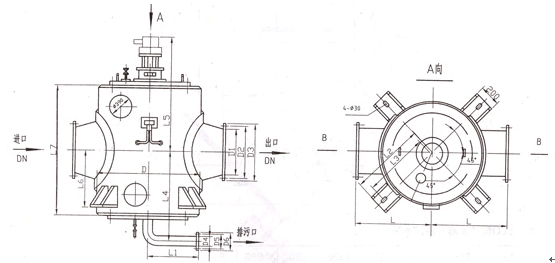

3. External dimension table


规格 D D1 D2 D3 L L1 D4 D5 D6 L2 L3 L4 L5 L6 L7
DN900 1600 920 1020 1075 920 850 133 210 245 1050 950 1100 1600 800 1800
DN800 1500 820 920 975 870 800 133 210 245 1000 900 1050 1550 750 1700
DN700 1500 720 810 860 870 800 133 210 245 1000 900 1050 1550 750 1700
DN600 1350 630 705 755 850 700 108 180 215 875 800 1050 1550 750 1700
DN500 1300 529 620 670 850 700 108 180 215 875 800 1050 1450 750 1700
DN450 1300 478 565 615 850 700 108 180 215 850 775 1050 1450 750 1700
DN400 1300 426 515 565 850 700 108 180 215 900 825 1050 1450 750 1700
DN350 1300 377 460 500 850 700 108 180 215 850 775 1050 1450 750 1700
DN300 1000 325 400 440 700 600 89 160 195 700 625 950 1350 650 1500
