 EFF secondary filter

Name: EFF secondary filter

Details

EFF model with four network in secondary filter core, cooling water flow from the internal to the external network core network core, impurity contamination accumulation within the network core, when the network core inside and outside differential pressure is greater than a certain value, each operation valve plate rotate 90 ° Angle, cut into the cooling water inside the core network, open the outlet at the same time, at this point, the (single) core network outside of the cooling water flow to the inside network core, impurities dirt by discharge outlet. After cleaning the mesh core in turn, return to normal operation.

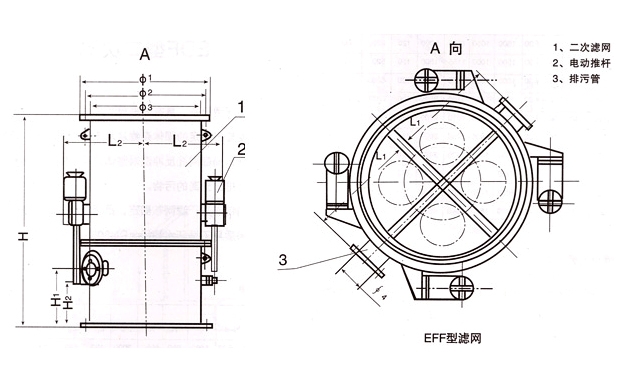

EFF type secondary filter contour scale
单位:mm


型号 尺寸 ∮1 ∮2 ∮3 ∮4 H H1 H2 L1 L2 执行机型号
EFF-400 565 515 426 159 1150 300 200 365 576 手动
EFF-500 670 620 530 194 1290 330 220 415 576 DT5000-14/B
EFF-600 755 705 630 194 1250 320 210 455 576 DT5000-14/B
EFF-700 860 810 720 219 1495 365 240 460 576 DT5000-14/B
EFF-800 975 920 820 219 1700 420 300 510 627 DT5000-14/B
EFF-900 1076 1020 920 273 1765 480 330 587 732 DT5000-14/B
EFF-1000 1176 1120 1020 273 1790 510 370 687 782 DT5000-14/B
EFF-1200 1400 1340 1220 325 2276 615 440 832 889 DT5000-14/B
EFF-1400 1575 1520 1420 325 3000 685 510 910 962 DT5000-14/B
EFF-1600 1800 1740 1620 426 3450 810 580 1070 1068 DT5000-14/B
EFF-1800 1985 1930 1820 529 3600 950 650 1150 1150 DT5000-14/B
EFF-2000 2185 2130 2020 630 4100 1070 730 1200 1200 DT10000-14/B
EFF-2200 2400 2330 2220 630 4200 1140 830 1250 1250 DT10000-14/B
EFF-2400 2760 2700 2600 630 4000 1405 1035 1620 1550 DT20000-40/600
