FH type secondary filter

Name:FH type secondary filter

Details

The FH type secondary filter net retains part of the structure of the old product, adds electric devices, and makes the structure and performance of secondary filter net more perfect, and is widely used in cooling water open-type circulation system of 6MW to 300MW thermal power generation units.

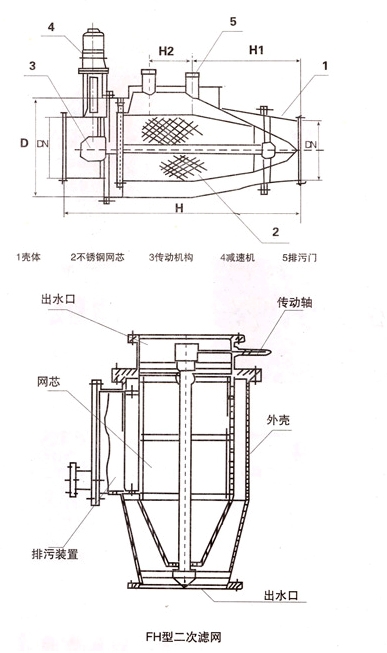

Specification, model and dimension table



规格型号
通径DN 壳体直径D 总长度H 排污管间距H2 通流面积比 排污管径 附注说明
FH-600 600 1120 2680 600 1:3.60 159 ①网孔直径8mm,水阻≤500mmH2O。
②安装位置根据用户要求。
③结构外型尺寸保证通流量
前提下,
按用户要求设计。
④网芯转动速度按用户
要求设计。一般控制
在2转/分钟以下。
FH-700 700 1220 3170 600 1:3.60 φ219
FH-800 800 1320 3080 600 1:3.50
FH-900 900 1420 3280 600 1:3.40
FH-1000 1000 1520 3480 600 1:3.40
FH-1200 1200 1720 3980 600 1:3.30
FH-1400 1400 1870 3500 600 1:3.0
FH-1600 1600 2224 4910 700 1:3.25 φ273
FH-1800 1800 2600 4830 700 1:2.98
FH-2000 2000 2724 5710 700 1:3.10
FH-2200 2200 3024 6110 750 1:3.10
