Name：Put the ball room
Details
1, the introduction of

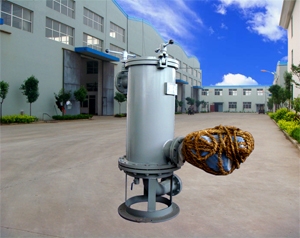

The ball loading chamber is the equipment used for ball adding, ball receiving, ball changing and observing the operation of the ball in the rubber ball cleaning device of the condenser.

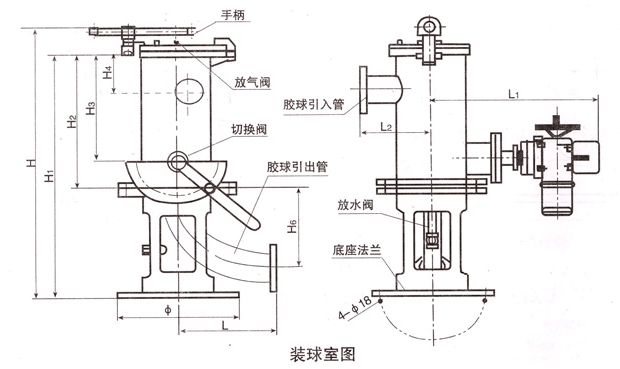

2. External dimension table
| 型号 尺寸 | H | H1 | H2 | H3 | H4 | H5 | ∮ | L | L1 | L2 | 执行机型号 |
| ZQ-17S | 1150 | 1010 | 538 | 415 | 95 | 347 | 440 | 360 | 335 | 320 | - |
| ZQ-17 | 1150 | 1010 | 538 | 415 | 95 | 347 | 440 | 360 | 435 | 320 | QB10-1 |
| ZQ-24 | 1370 | 1220 | 748 | 625 | 95 | 347 | 440 | 360 | 480 | 320 | |
| ZQ-47S | 1560 | 1400 | 928 | 790 | 95 | 340 | 565 | 410 | 382 | 370 | |
| ZQ-47A | 1560 | 1400 | 928 | 790 | 95 | 340 | 565 | 410 | 590 | 370 | QB10-1 |
| ZQ-47B | 1560 | 1400 | 928 | 790 | 120 | 325 | 565 | 400 | 382 | 370 |
