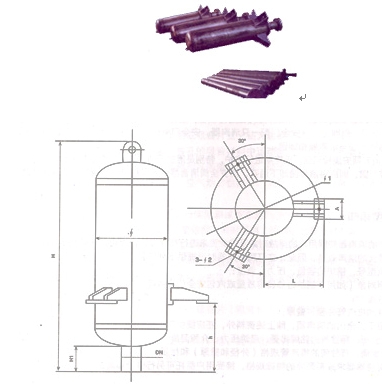

Steam exhaust silencer

Name：Steam exhaust silencer

Details

The new steam muffler series produced by our factory is a muffler which is used to control high and medium pressure steam. It is widely used for middle pressure, high pressure, ultra-high pressure and sub-critical steam parameters of various types of boilers, steam exhaust, safety door and machine room noise reduction, noise reduction, also applicable to other industries of steam (gas) body medium emission noise reduction.


Technical parameters

产品型号 适用锅炉参数 消声器特性 接管直径
mm
类别 压力
Mpa 		温度℃ 容量t/h 设计
排量
t/h 		消声量
[dB(A)] 		总长Hmm 直径φmm
XXP30-2.5/
350-10 		中压 3.82 450 35～130 10 ≥30±5 1360 φ377 φ114×6
XXP30-2.5/
240-15 		15 1208 φ310 φ57
XXP30-2.5/
240-25 		25 1850 φ462 φ168×6
XXP30-3.82/
450-10 		10 1440 φ219 φ57×4
XXP30-3.82/
450-20 		20 2021 φ273 φ76×4.5
XXP30-3.82/
450-30 		30 2492 φ325 φ89×4.5
XXP30-3.82/
450-20 		20 1400 φ612 φ159×4.5
XXP30-3.9/
450-12.5 		12.5 1505 φ325 φ89×4.5
XXP30-3.9/
450-25 		25 1450 φ325 φ57×4
XXP30-3.9/
450-40 		40 2350 φ325 φ108×4.5
XXP30-4.0/
450-12.5 		12.5 1225 φ273 φ108×4
XXP30-4.2/
450-20 		20 1572 φ325 φ133×4.5
AXP30-4.2/
300-30 		30 2050 φ835 φ219×8
XXP38-5.29/
450-20 		次高压 5.3 485 35～130 20 ≥30±5 1300 φ310 φ108×4.5
XXP36-5.29/
450-30 		30 1850 φ310 φ108×4.5
XXP30-5.29/
450-45 		45 2180 φ410 φ108×4.5
AXP30-5.29/
485-60 		60 2652 φ462 φ133×6
XXP30-5.3/
485-70 		70 2450 φ512 φ133×6
AXP35-5.51/
450-70 		70 3285 φ512 φ194×6
AXP30-5.3/
485-70 		70 3150 φ820 φ325×10
XXP30-5.51/
450-80 		80 3235 φ408 φ133×4.5
XXP30-5.59/
485-25 		25 1398 φ310 φ108×6
XXP30-5.59/
485-40 		40 1920 φ410 φ108×6
AXP20-5.6/
485-20 		20 1965 φ860 φ159×6
AXP30-5.8/
273-60 		60 2025 φ410 φ133×6
XXP30-6.2/
485-60 		60 3300 φ512 φ219×10
XXP25-5.51/
450-70 		70 3235 φ500 φ194×6
XXP30-9.8/
540-63 		高压 9.81 540 220～410 63 ≥30±5 3308 φ512 φ194×7
XXP30-10.5/
540-100 		100 2608 φ612 φ133×8
AXP30-10.5/
540-125 		125 3580 φ1900 φ426×10
XXP30-9.8/
540-63 		63 2547 φ412 φ133×10
AXP30-12/
320-180 		超高压 13.73 540 400～670 180   3580 φ1800 φ426×10
XXP30-14/
560-2.5 		2.5 1302 φ133 φ25×3
XXP30-14.7/
540-100 		100 2600 φ612 φ159×14
XXP30-16/
540-40 		40 2600 φ520 φ89×12


产品型号 适用锅炉参数 消声器特性 接管直径
mm
类别 压力
Mpa 		温度℃ 容量
t/h 		设计
排量
t/h 		消声量
[dB(A)] 		总长
mm 		直径
mm
ZQP5-1.27/300 低压 ≤1.6 ≤340   5 ≥30±5 812 ∮472 ∮89×4
ZQP10-1.27/250 10 1300 ∮572 ∮108×4
ZQP20-1.27/250 20 1300 ∮612 ∮159×6
ZQP10-1.3/190 10 1224 ∮273 ∮108×4
ZQP2-1.3/300 2 712 ∮410 ∮45×3.5
ZQP3-1.3/300 3 712 ∮426 ∮57×4
ZQP8-1.3/300 8 812 ∮540 ∮89×4
ZQP20-1.6/147 20 2267 ∮273 ∮159×4
ZQP300-1.6/250 300 2572 ∮372 ∮45×3.5
ZQP8-1.0/400 8 2900 ∮490 ∮89×5
