Boiler slag removal on coal ash removal equipment
Name：CHQ - Ⅰ, Ⅱ box-type ash
Details

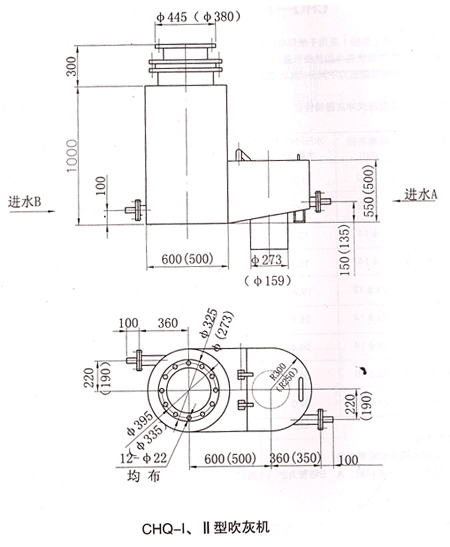

CHQ - Ⅰ, Ⅱ box-type ash
Brief introduction:
Box type ash puncher is used for coal - fired power plant electric dust collector's ash discharge port lock air flush equipment.
Technical parameters:
|
干灰出力 t/h |
喷嘴直径 mm |
水压PN0.5 耗水量m3/h |
水压PN0.6 耗水量m3/h |
水压PN0.7 耗水量m3/h |
水压PN0.8 耗水量m3/h |
| 2 | φ10 | 6.58 | 7.37 | 8.05 | 8.42 |
| 3 | φ12 | 9.62 | 10.45 | 11.35 | 12.15 |
| 4 | φ14 | 13.2 | 14.3 | 15.45 | 16.65 |
| 5 | φ14 | 13.2 | 14.3 | 15.45 | 16.65 |
| 6 | 2×φ12 | 19.24 | 20.9 | 22.7 | 24.3 |
| 7 | 2×φ14 | 26.4 | 28.6 | 30.9 | 33.3 |
| 8 | 2×φ14 | 26.4 | 28.6 | 30.9 | 33.3 |
| 9 | 2×φ16 | 34.0 | 37.2 | 40.4 | 43.2 |
| 10 | 2×φ16 | 34.0 | 37.2 | 40.4 | 43.2 |
