Ld-b x L chain bucket conveyor

Name:Ld-b x L chain bucket conveyor

Details
Brief introduction:

Ld-b x L chain bucket conveyor is a wheel chain hopper running along the track to achieve horizontal or inclined material transfer equipment. It is widely used in the conveyance of boiler ash, cement clinker, iron slag, slag, limestone, coke, etc.


Technical parameters:
型号 输送
宽度
mm
链速范围
| m/min
输送能力 电机功率计算系数 安装空间
α≤25° α>25°≤35° α>35°≤60° a
kN/m
b
m2
c
m2

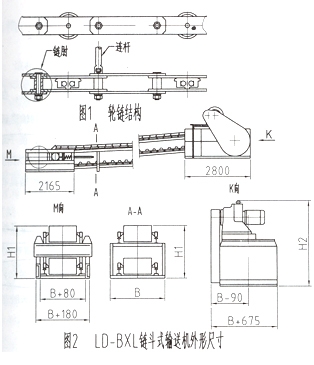

B H1 H2
LD-450×L 450 3.5-17.5 16-78 13-64 11-55 1.061 0.061 0.469 960 1110 2140
LD-630×L 630 3.5-17.5 22-109 18-90 15-74 1.071 0.085 0.469 1140 1110 2320
LD-800×L 800 3.5-17.5 50-250 40-200 30-149 2.43 0.154 1.066 1310 1510 2570
LD-1000×L 1000 3.5-17.5 62-312 50-250 37-185 2.73 0.193 1.066 1510 1510 2750
