Boiler slag removal on coal ash removal equipment
Name：Gbl-1.2 N series scraper dredger
Details

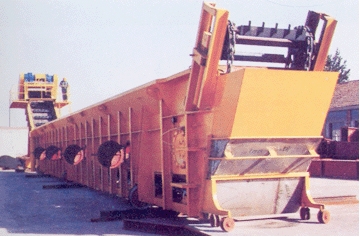

Gbl-1.2 N series scraper dredger
Brief introduction:
This type of scraper dredge is a new generation power station boiler slag removing equipment developed independently by our company in 1989. The main technical indexes have reached the advanced level of the same kind of foreign products and can completely replace the imported products.
Technical parameters:
| 序号 | 项目 | 参数 | |
| 1 | 捞渣量 | 3-22t/h | |
| 2 | 刮板运行速度 | 0.3-3m/min（无级调速） | |
| 3 | 电动机功率 | 5.5kw(7.5kw) | |
| 4 | 刮板规格（长×宽） | 1200mm×200mm | |
| 5 | 链条规格及材质 | 22×t86（日本进口材料）(23MnNiCrMo64) | |
| 6 | 采用双级 | 电子过载保护 | <10s切断电源(1.2le) |
| 过载保护 | 机械过载保护 | 4.9kg.m脱开离合器 | |
| 7 | 水封深度 | 200MW(1m).300MW(1.2m) | |
| 8 | 减速机形式 | 行星摆线针轮减速机 | |
| 9 | 耗水量 | <5t/h | |
