Name：Combined type of transmission device
Details

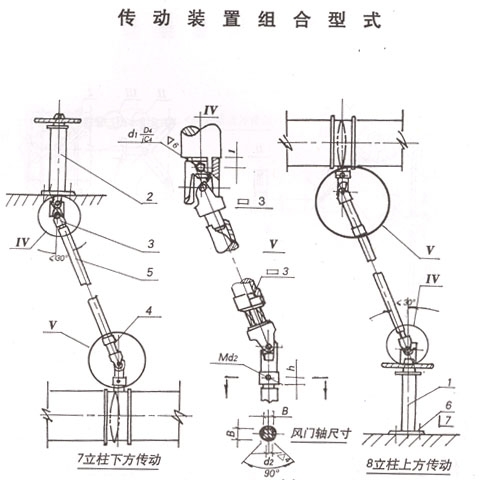

组合型式
|
Ⅰ |
h | B | d1 | d2 | 扭矩 |
| 毫米 | |||||
| 15 | 18 | 17 | 8 | 8 | 8公斤一米 |
| 20 | 20 | 32 | 12 | 12 | 30公斤一米 |
图纸目录
|
序号 |
图纸名称 | 8公斤-米 | 30公斤-米 |
| 图号 | |||
| 1 | 立柱上方传动装置 | DD7205 | DD7206 |
| 2 | 立柱下方传动装置 | DD7207 | DD7208 |
| 3 | 万向接头 | DD7501 | DD7502 |
| 4 | 带伸缩节万向接头 | DD7503 | DD7504 |
| 5 | 钢管 | φ1 | φ1 1/4 |
| 6 | 螺栓 GB18-66 | 4×M12长度工程中定 | 4×M16长度工程中定 |
| 7 | 螺母 GB45-66 | 4×M12 | 4×M16 |
