Name：Combined type of transmission device
Details

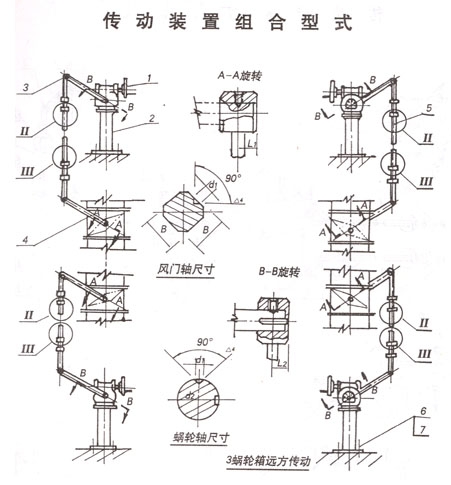

传动装置组合型式
| L1 | L2 | B | d1 | d2 | 扭矩 |
| 毫米 | |||||
| 20 | 20 | 17 | 6 | 22 | 8公斤一米 |
| 20 | 30 | 32 | 8 | 32 | 30公斤一米 |
图纸目录
| 序号 | 图纸名称 | 8公斤-米 | 30公斤-米 |
| 图号 | |||
| 1 | 远方传动蜗轮箱 | DD7105 | DD7106 |
| 2 | 蜗轮箱无方传动装置 支座 | DD7305 | DD7306 |
| 3 | 接远方传动蜗轮轴构件 | DD7401 | DD7402 |
| 4 | 接风门轴构件 | DD7403 | DD7404 |
| 5 | 钢管 | φ1" | φ1 1/4 " |
| 6 | 螺栓 GB18-66 | 4×M12长度工程中定 | 4×M16长度工程中定 |
| 7 | 螺母 GB45-66 | 4×M12 | 4×M16 |
