Your Current Location ：Home » PRODUCTS » Boiler pulverized coal smoke duct equipment » Category  » Dn100-dn1400 circular damper DD4

Boiler pulverized coal smoke duct equipment

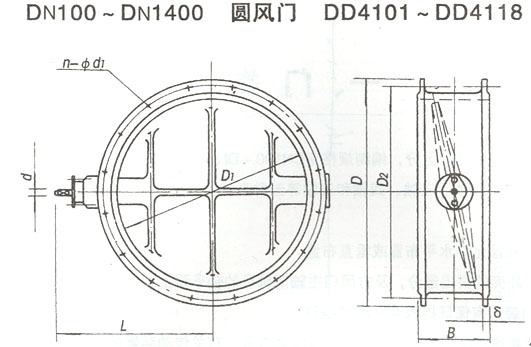

Dn100-dn1400 circular damper DD4

Name：Dn100-dn1400 circular damper DD4

Details


标号 公称通径
DN 		D D1 D2 B L δ d d1 螺栓孔数
(n)
毫米
DD4101 100 195 100 160 80 177 14 φ15 14 4
DD4102 150 250 150 215 238 17×17 8
DD4103 200 305 200 270 270 16
DD4104 250 365 260 330 90 300 12
DD4105 300 430 310 385 180 342 18
DD4106 350 480 360 435 367
DD4107 400 535 410 490 392 20 18
DD4108 450 585 460 540 417
DD4109 500 645 520 600 447
DD4110 600 745 620 700 497 16
DD4111 700 850 710 800 260 570 22 32×32
DD4112 800 950 810 900 620 20
DD4113 900 1050 910 1000 670
DD4114 1000 1150 1010 1100 720 22
DD4115 1100 1250 1110 1200 300 790 24
DD4116 1200 1350 1210 1300 840
DD4117 1300 1450 1310 1400 890 24
DD4118 1400 1550 1410 1500 940 28
