Name：DP type periodic blowdown expander
Details

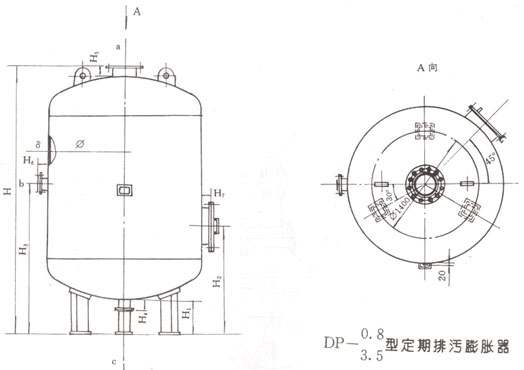

DP type periodic blowdown expander
Brief introduction:
DP type periodical discharge expander is to separate the waste water from the boiler regularly, and obtain steam and waste hot water. It can use the heat of steam and waste hot water to heat the raw water or chemical make-up water, so as to improve the heat utilization rate of the boiler. This equipment is a kind of pressure vessel.
Technical parameters:
| 型号 参数 |
设计压力 Mpa |
设计温度 ℃ |
最高工作 压力Mpa |
工作温度 ℃ |
容积 m3 |
重量 kg |
| DP-0.8 | 0.162 | 150 | 0.15 | 127 | 0.8 | 547 |
| DP-3.5 | 0.2 | 150 | 0.15 | 127 | 3.5 | 960 |
| DP-7.5 | 0.6 | 200 | 0.6 | 165 | 7.5 | 2610 |
| DP-12 | 0.17 | 150 | 0.15 | 127 | 12 | 2683 |
| DP-35 | 0.17 | 150 | 0.15 | 127 | 35 | 6833 |
