Name：The fixed bed regenerates sodium ions upstream

Details

Brief introduction:
Sodium ion exchanger is mainly used to remove calcium and magnesium ions in water, reduce the total hardness of water, and provide users with softening water of <0.04 mg/l (total hardness).
Technical parameters:

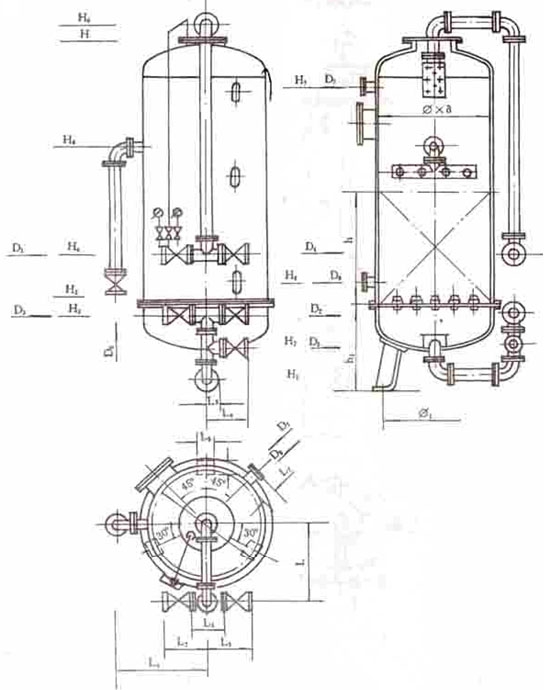

The fixed bed regenerates the primary sodium ion exchanger
单位：mm

	DN500			DN600			DN800			DN1000			DN1200
	1600	1800	2000	1600	1800	2000	1600	1800	2000	1600	1800	2000	1600	1800	2000
型号	JQNⅠ-500			JQNⅠ-600			JQNⅠ-800			JQNⅠ-1000			JQNⅠ-1200
设备截面积(m2)	0.196			0.283			0.5			0.785			1.13
设计最大流量m3/H	4.8			7			12.5			20			28
交换剂体积(m3)	0.32	0.36	0.4	0.46	0.51	0.57	0.80	0.90	1.00	1.3	1.42	1.6	1.81	2.04	2.26
工作压力 Mpa	0.6			0.6			0.6			0.6			0.6
工作温度℃	5-35			5-35			5-35			5-35			5-35
试验压力 Mpa	0.9			0.9			0.9			0.9			0.9
设备空重kg	648	708	759	758	819	890	1010	1092	1174	1692	1824	1956	1722	1844	1978

单位：mm

	DN1500			DN2000			DN2200			DN2500			DN3000			DN3200
	1600	1800	2000	1600	2000	2400	1600	2000	2400	1600	2000	2400	1600	2000	2400	1600	2000	2400
型号	JQNⅠ-1500			JQNⅠ-2000			JQNⅠ-2200			JQNⅠ-2500			JQNⅠ-3000			JQNⅠ-3200
设备截面积(m2)	1.77			3.14			3.8			4.9			7.06			8.06
设计最大流量m3/H	44			78.5			95			122.5			175			200
交换剂体积(m3)	2.83	3.2	3.55	5	6.32	7.54	6.08	7.6	9.12	7.82	9.82	11.7	11.3	14.1	16.9	12.8	16	19.2
工作压力Mpa	0.6			0.6			0.6			0.6			0.6			0.6
工作温度℃	5-35			5-35			5-35			5-35			5-35			5-35
试验压力Mpa	0.9			0.9			0.9			0.9			0.9			0.9
设备空重kg	2062	2218	2368	3418	3719	3962	4251	4614	4905	5491	5932	6315	7818	8425	9140	8738	9415	10010
