DSZ low water jet vacuum deaerator

Name:DSZ low water jet vacuum deaerator

Details

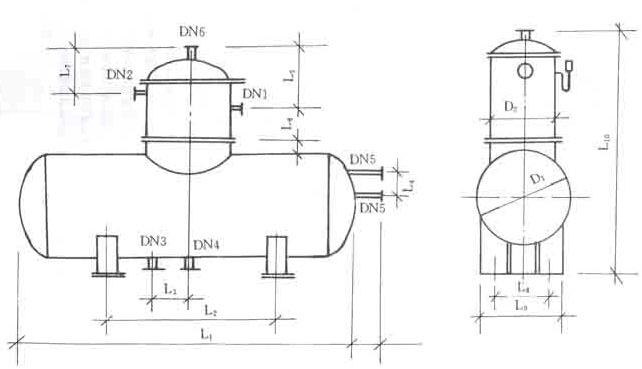

DSZ low water jet vacuum deaerator

Brief introduction:
The water jet vacuum deaerator has the characteristics of saving energy, adapting to changes, reliable effect and wide application. It consumes almost no steam, can be installed anywhere, is not restricted by height difference, and is highly adaptable to load variability.

Technical parameters:


序号 名称 单位 规格型号
DSZ-2 DSZ-4 DSZ-6 DSZ-10 DSZ-20 DSZ-35
1 额定出力 t/h 2 4 6 10 20 35
2 最大出力 t/h 2.5 4.8 7.2 12 24 40
3 工作温度 ≤50 ≤50 ≤50 ≤50 ≤50 ≤50
4 工作压力
(真空度)
Mpa ≥0.0933 ≥7000 ≥7000 ≥7000 ≥7000 ≥7000
5 进水压力
(表压)
Mpa ≥0.2 ≥0.2 ≥0.2 ≥0.2 ≥0.2 ≥0.2
6 出水含氧量 mg/l ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1
7 除氧水箱
有效容积
m3 1 2 3 3 6 12
8 脱气塔规格 mm D500 D500 D600 D700 D800 D1000
9 除氧水箱规格 mkg D800 D1000 D1200 D1200 D1600 D2000
10 设备重量 kg ~900 ~940 ~1267 ~1646 ~2730 ~4068
11 软化水进水
泵型号
电机功率

KW
IS50-32-125
2.2
IS50-32-160
3
IS50-32-160
3
IS65-50-160
5.5
IS80-65-160
7.5
IS80-65-160
7.5
12 水射真空泵
机组
  PSJ-40 PSJ-40 PSJ-80 PSJ-160 PSJ-280 PSJ-280
13 引水泵机组   YSJ-2 YSJ-4 YSJ-6 YSJ-10 YSJ-20 YSJ-35
